Things to know
The Pride Zero Turn 10
4-wheel scooter comes with FREE 1-Year In-Home Service. If
you experience a problem with your scooter during the first twelve
months, simply contact Las Vegas Scooters and Lifts to arrange for a
technician to come to your home for diagnosis and repair.
What's the Difference
Three wheel scooters give the user great turning radius and also
tend to be slightly lighter then their four wheel counterparts, but
have a greater tipping factor than a four wheel scooter. Four wheel
scooters tend to be better for people who either are new to scooters
or have balance issues giving the rider a better sense of stability
and less chance of tip, but have added weight due to the extra front
wheel and added frame support. Larger 3 wheel scooters tend to have
a wider stance than the small travel type scooters making tipping a
little less of a factor but their faster speeds still can create the
ability to tip. Larger four wheel scooters reduce the tip factor
greatly but can be less maneuverable in tight spaces such as door
ways and public transport.

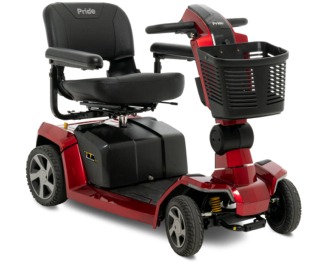

The Zero Turn 10 4-wheel scooter features many new innovations to scooter
market such as its new iTurn technology twin rear motors giving this
scooter four wheel stability with three wheel turning capability, forward and back
seat adjustments
swivel and seat. With its
full LED lighting package includes front and rear lights for pathway
and user visibility and safety and left, right and hazard sequential turn
signals. It's
wrap-around delta tiller with tiller
mounted charge port, USB port and cup holder and easy adjust tiller position give
the user the option to charge the scooter without having to bend
down. Zero Turn 10 also comes with full front and rear CTS
suspension, larger 40AH batteries and a and also disassembles in to five pieces still
allowing you to load in to some larger vehicles to transport.
For someone looking for
an outdoor distance scooter with four wheel stability and still
having the turning radius of three wheel scooter, with its
three speed selector 3,5 and top speed of 7 mph the ZT10 is the new
choice for a mid to large scooter. With its great comfort and ease of use the
Zero Turn 10 is available in Candy
Apple Red, Ocean Blue and Pearl White. Even
though this scooter can be disassembled the parts can weight a
considerable amount more than the regular travel/transportable
scooters. To avoid injury we recommend that two people lift this
scooter or a vehicle rated to carry a scooter lift, hoist or carrier
for transporting in a vehicle.
The Scooter requires assembly upon
delivery includes attaching the seat (plus any accessories) and charging
the batteries for 8-12 hours prior to use.
|
Specifications
Model |
Zero Turn 10
|
Model Number |
S710ZT
|
Turning Radius** |
43" |
Overall Width |
24.25" |
Overall Length** |
48" |
Maximum Speed* |
Up to 7.0 mph |
Ground Clearance |
2" at motor |
Front Tires |
9" solid |
Rear Tires |
10.75" solid |
Drive System |
24-volt DC motor,
rear-wheel drive, dual in-line |
Dual Braking System |
Regenerative and
electromechanical |
Suspension |
Front & Rear (CTS
Suspension) |
Seat-to-Ground Height
Range |
23"-25" |
Standard Seating |
Type: Foldable,
compact, molded plastic, Weight: 30 lbs., Materal: Black
Vinyl, Dimensions: Width: 18", Depth 17" |
Weight** |
181.8 lbs. |
Battery Requirements |
Size: (2) 40 Ah,
Weight: 30.25 lbs. each |
Maximum Range Per Charge* |
Up to 17.9 miles at
400 lbs., Up to 24 miles at 200 lbs. |
Battery Charger |
Off-board, 3.5 amp |
Maximum Weight Capacity |
400 lbs. |
Standard Body Colors |
Candy Apple Red,
Ocean Blue, Pearl White |
Weight of Heaviest Piece** |
75 lbs. (front
section) |
Seat-to-Deck Height |
18"-20" |
Warranty |
Frame: lifetime
limited,
Drivetrain: 2-year limited,
Electronics: 2-year limited,
Battery: 6-months |
|
|
Notes: 1 Varies with user weight, terrain type, battery amp-hour (AH), battery charge, battery condition and tire condition. These specifications can be subject to a variance of (+/- 10%). 2 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or 3%). 3 AGM or gel cell type required. 4 Tested in accordance with ANSI/RESNA, WC Vol2, section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity. 5 Battery weight may vary based on manufacturer.
All specifications subject to change without notice. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. Speed and range vary with user weight, terrain type, battery charge, battery condition and tire pressure. Due to manufacturing tolerances and continual product improvement, length, width, turning radius and ground clearance can be subject to variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections. |
